milton roy is famous for its reliability. It combines a large number of industry experience, verifiable good performance and continuous technological improvement of the corporate culture to provide the most reliable and extensive metering pumps and mixers.
By accurately predicting and responding quickly to the challenges faced by various industries around the world, Mitonro has continuously promoted technological progress.
Every part of the design exceeded expectations. The world's leading network of well-trained field engineers and after-sales service teams around the world is the strong backing of Mitonro.
Metering pump：

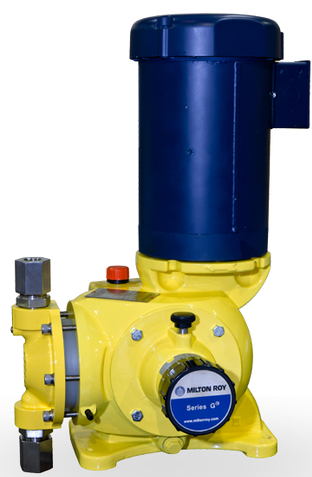

G series/MACROY Metering pump
Metering pump：
G series/MACROY Metering pump
Simple, economical and firm
High Efficiency Design for Small Pressure and Large Flow Water Treatment Applications
G series metering pumps, also known as MACROY pumps, are ideal pumps designed for water treatment applications, capable of handling up to 175 psi and 310 GPH (1181 l/h) of flow. Combining the heavy-duty industrial driving technology, the most advanced design and production technology, this mechanical driving diaphragm pump reduces the flow restriction, reduces the possibility of medium pollution of hydraulic oil, and ensures safe transportation.

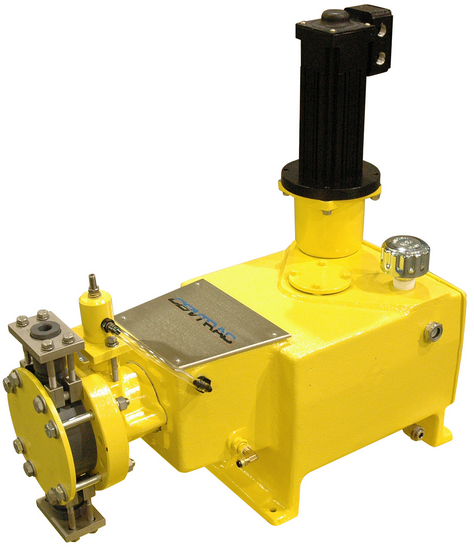

CENTRAC * Series metering pumps
High Precision and Sensitivity
CENTRAC series metering pumps are designed to operate with the highest performance and accuracy.
CENTRAC series metering pumps have unique fixed stroke length driving mechanism and electronic variable speed driving technology. The unique drive system of CENTRAC series pumps ensures the steady-state accuracy of +/-0.5% in the whole regulation range. This is twice the accuracy standard of +/- 1% for most metering pumps. Higher accuracy means better control of the process and more efficient use of chemicals.
In addition, CENTRAC series metering pump can also provide 100:1 regulation ratio. Advanced design enables the pump to respond to the change of dose rate in a timely manner, making it an ideal metering pump suitable for various flow rates in water and wastewater treatment applications.

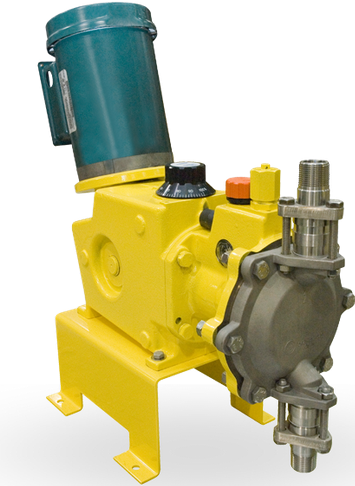

MAXROY metering pump
MAXROY metering pump
Solid and reliable
Suitable for the most demanding chemical process applications
MAXROY series is rugged and stable. It is an industrial standard metering pump with a maximum flow rate of 290 gallons per hour (1100 litres per hour) and a maximum pressure of 406 psi (28 bar). Cast iron box is coated with chemical corrosion resistance to ensure that the pump can also be used in the worst environment.

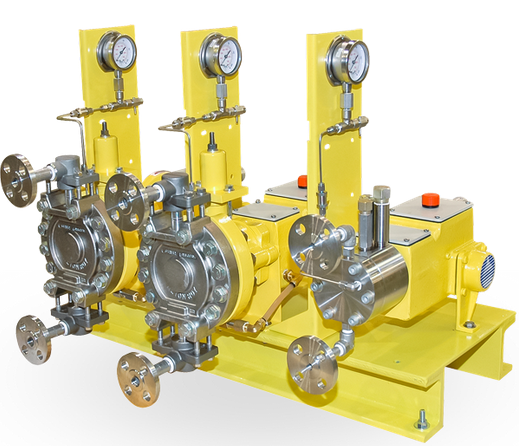

MILROYAL metering pump
MILROYAL metering pump
Modular Design, Application in High Voltage Circumstances
Customization is crucial
Milroyal series metering pumps are the most reliable industrial metering pumps for key processes in the industrial field, such as petroleum and natural gas, chemical and petrochemical industries, industrial water treatment, etc.
The key to its success is that modular design includes a variety of hydraulic terminals and other options to meet the needs of your process. Three pumps of different sizes provide accurate chemical dosing over a wide range of flow and pressure.
Optional multi-pump head, can be used in the same base or different base, greater flexibility.

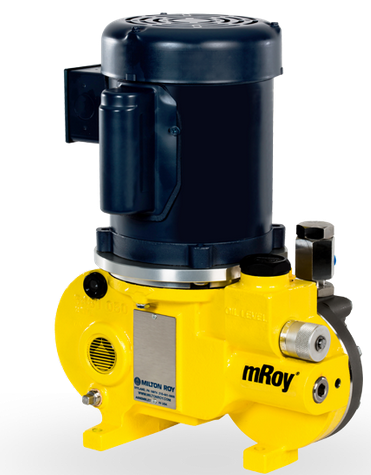

MROy series metering pump
MROy series metering pump
Extended normal operation time with its unparalleled accuracy and reliability
Setting global industry standards for critical process control
The mROY series metering pumps control chemical dosing with unparalleled accuracy and reliability. The metering pump is durable and simple in design, which ensures that the steady-state accuracy is within (+1%) when some dangerous chemicals are added.
Many mROY metering pumps can operate for 20 years or more under design performance. Because the mROY metering pump has a series of unique technical parameters, it can provide consistent chemical dosing performance with minimal maintenance.
Flow rates range from 0.20 gallons per hour (0.8 liters per hour) to 174 gallons per hour (666 liters per hour). Chemicals can be added to many key processes, such as chemical industry, municipal water treatment, offshore platforms, etc.

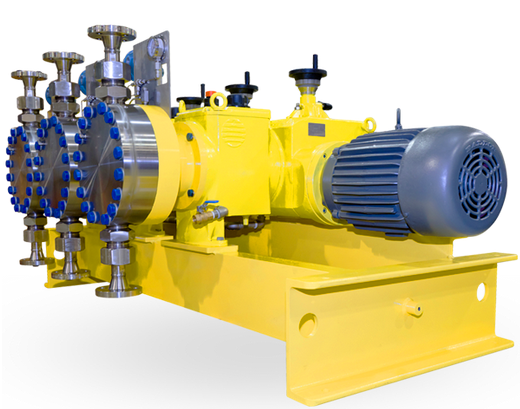

PRIMEROYAL series metering pumps
PRIMEROYAL series metering pumps
Focus on the application of key chemicals, reliable and multi-functional
Primeroyal series metering pumps combine powerful, field-proven technology, flexible design and chemical delivery accuracy, so they are suitable for many industrial processes.
Variable eccentric drive of Primeroyal series metering pumps can accurately control the transmission speed of pumps when it meets or exceeds the industry standards of steady-state accuracy and repeatability accuracy. Its design is efficient and can achieve reliable performance in the smallest space size.
The newly developed Prieroyal X series metering pumps are designed to ensure accuracy of 20,000 psi (1,372 bar) in the most demanding environment.

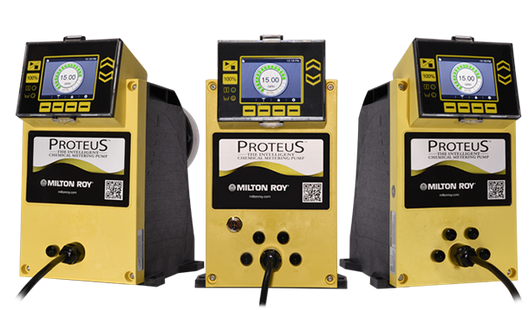

PROTEUS series metering pumps
PROTEUS series metering pumps
The new version of the communication mode metering pump provides more stringent process control and high-performance system automation.
The new PROTEUS communication mode adds Modbus RTU and Profibus DP protocol to improve processing speed and two-way communication. This product enables field operators to connect equipment from different suppliers to the central monitoring and data acquisition system for control, monitoring and maintenance operations.
PROTEUS @ series metering pump is a mechanical driven diaphragm metering pump. Through advanced frequency conversion technology, it meets the need of chemical additives in water treatment. All three modes of PROTEUS metering pumps - manual, enhanced and communication modes - meet the requirements of various process control applications, such as water and wastewater treatment, agriculture, chemical industry, oil and gas, power generation, pulp and textile industry.
Each PROTEUS product provides backlight color display and a convenient multilingual navigation interface: English, French, Spanish, Portuguese and Chinese.
Regardless of the application area, PROTEUS series metering pumps will meet your requirements for excellent performance and intelligent products.
Process pump：

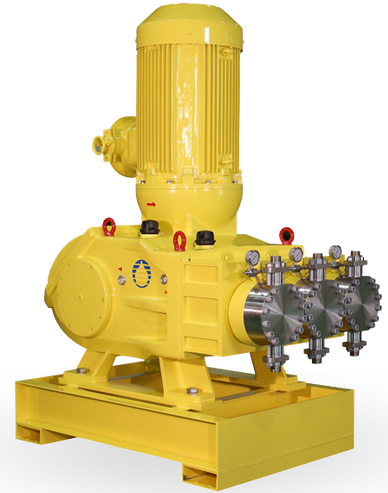

Megaroyal metering pump
Process pump：
Megaroyal metering pump
Optimum leak-proof performance for chemical dosing in large flow applications.
Megaroyal process diaphragm pump is specially designed for key process. It has high reliability, almost no leakage, modular design and occupies less space.
Megaroyal process pump is the best choice for large flow applications. The maximum flow rate can reach 60 m/h (15,850 gph). In addition, compared with other competing products of the same kind, the space occupancy of Megaroyal process pump is reduced by 25%.
MITONLO provides high reliability products to meet customer expectations. In addition, we have added other features to make it more cost-effective, easy to install and maintain, and meet the needs of chemical dosing.

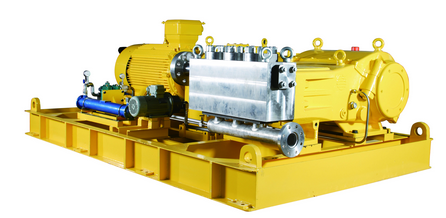

Poweroyal Volumetric Reciprocating Pump
Poweroyal Volumetric Reciprocating Pump
Suitable for high pressure, large flow applications, improve efficiency, reduce maintenance and improve performance
Under harsh application conditions, Poweroyal Volumetric Reciprocating Pump provides excellent performance. It is perfectly applied in high pressure and large flow situations. The design of the pump follows the principle of providing the best performance at the minimum size.
The advantages of the pump are special design of the hydraulic end, ensuring the integrity of the pump head, sealing technology to minimize unnecessary leakage, advanced lubrication system to reduce wear and tear, prolong the life of the equipment.
Various models are available to solve a series of flow and pressure range problems. Poweroyal pumps can operate in the most demanding environment.
Blender：

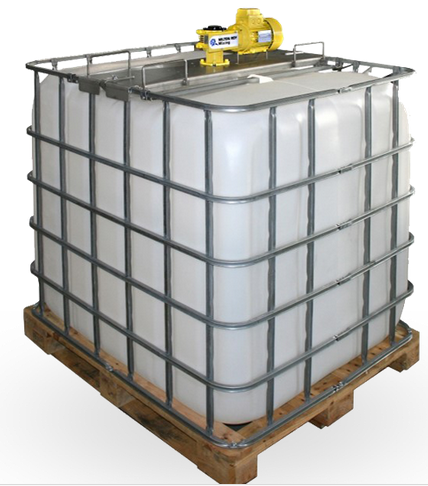

Helimix folding vane mixer
Blender：
Helimix folding vane mixer
Simple and Efficient Design of Mixed Tank for Medium Batch Treatment
Helimix folding blade agitator is designed to overcome the batch processing characteristics of medium storage tanks. Medium-sized tank products must be stirred regularly to prevent delamination, but short processing time, narrow opening and adjustable installation height pose great challenges to standard agitators.
The foldable blades of Helimix mixer can be folded up to 70 mm at the minimum when folded, which is very easy to put in; 230 mm when unfolded, and the mixing range can reach four corners of the container.
