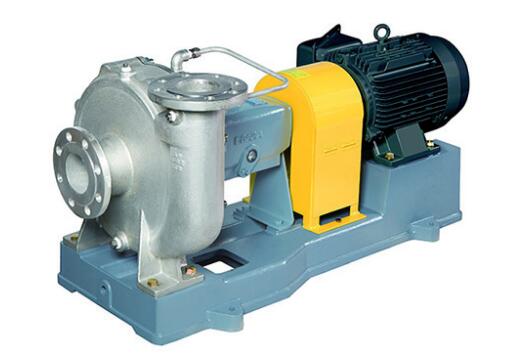

Model TFSQ
(1) This pump has a simple structure without a check valve and provides good self-priming performance, using a cyclone vortex.(2) This self-priming pump is suitable for draining slurry to a drainage pit.
(3) Disassembly and inspection are possible without removal of the suction and discharge piping.
■Standard Specifications
| Liquid | Specification | Water / Chemical water | ||
| Temperature | 0～60℃ | |||
| Density | 0.7～1.2kg/L | |||
| Max. suction performance | －7m*1 | |||
| Max. working pressure | 1.37MPa | |||
| Construction | Impeller | Semi-open type | ||
| Shaft seal | Mechanical seal | |||
| Bearing | Ball bearings(Oil bath) | |||
| Flange | JIS10K RF | |||
| Materials | Casing | SCS14 | ||
| Impeller | SCS14 | |||
| Shaft | SUS316 | |||
| Shaft sleeve | SUS316 | |||
*1 It varies depending on the liquid temperature and pump model.
■Optional Specifications
| Construction | Shaft seal | Stationary mechanical seal /Double mechanical seal type/Others | ||
| Materials | Shaft sleeve | SUS329J4L | ||
| SUS316 coating processed | ||||
| Coupling | Flexible disk type | |||
| Coupling guard | Enclosure type with hinges | |||
