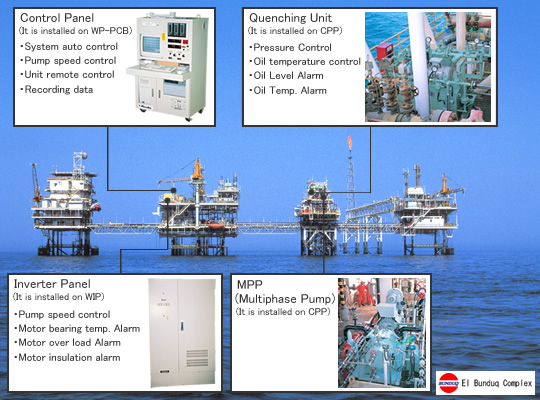

When a heterogeneous liquid is mixed, it causes a cavitation with usual Twin or Three spindle screw pump. Multiphase pump (MPP) is that our twin screw pump is improved and developed. This pump can be transfer Multiphase liquid of oil, gas and water. And it got high reliability. with a success of the actual proof examination in the oil field of UAE.
MPP is different from other pumps, and details vary in the use place. Kosaka will design and supply best suited pumps to customer's need from our experience for many years.

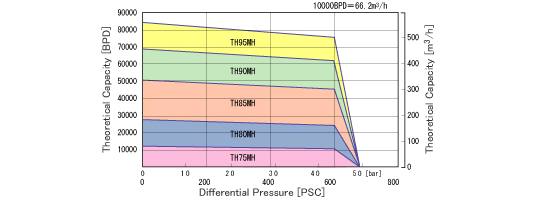

Pump Selection

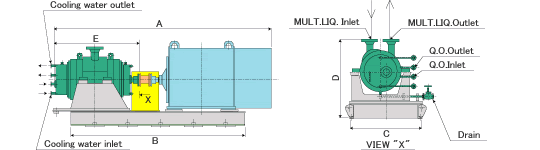

Pump Dimensions
| Pump Model | TH75MH | TH80MH | TH85MH | TH90MH | |
|---|---|---|---|---|---|
|
Unit (mm) |
A | 3128 | 3335 | 4650 | 5505 |
| B | 2400 | 2600 | 3700 | 4600 | |
| C | 1100 | 1200 | 1550 | 1800 | |
| D | 1200 | 1400 | 1690 | 1860 | |
| E | 1341 | 1540 | 1815 | 1910 | |
|
Weight (kg) |
Pump | 1800 | 2000 | 3000 | 3500 |
| Motor | 2100 | 2200 | 6500 | 8000 | |
| Base | 1100 | 1200 | 1600 | 2000 | |
| Total | 5000 | 5400 | 11100 | 13500 | |
| Motor output (kw) | 132 | 250 | 460 | 710 | |
