Vacuum Pumps ST

Features
Reliable belt-driven rotary vane vacuum pumps have been mainstays since the founding of our company, and they remain so today. Since our first models, we have made many improvements in convenience, durability and safety. In contrast to direct-coupled models, the rotational speed for these models is set to 600min–1, using pulleys of different diameters and abundant lubrication. This series has established a reputation for durability and long life.

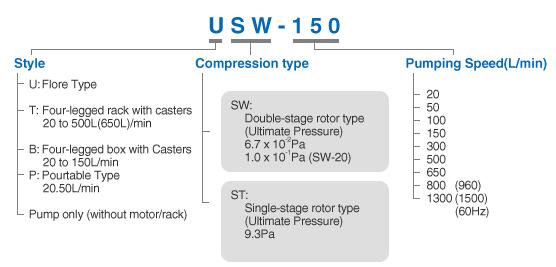

This product line offers models that cover the spectrum of pumping speeds, from 20 to 1500L/min, in single and double compression types, and in four styles(U/T/B/P).

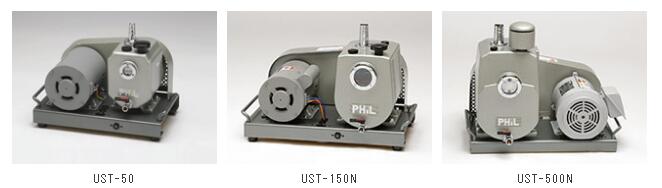

				UST-20	UST-50	UST-100	UST-150N	UST-300	UST-500N
Pumping Speed		L/min	50Hz	20	50	100	150	300	500
Pumping Speed		L/min	60Hz	20	50	100	150	300	500
Ultimate pressure	Without ballast	Pa		9.3	9.3	9.3	9.3	9.3	9.3
Ultimate pressure	With ballast	Pa		-	-	-	-	-	-
Motor power		W		65	200	250/1φ	300	400	750
Motor power		W		65	200	300/3φ	300	400	750
Voltage		V		1φ 100V	1φ 100V,220V	1φ 100V		1φ 100V,200V,220V
Voltage		V		1φ 100V	3φ 200V,220V,380V,400V
Rated rotational speed		min^-1	50Hz	600	600	600	600	600	600
Rated rotational speed		min^-1	60Hz	600	600	600	600	600	600
Oil Capacity		L		0.7	1.1	1.5	2.5	2.4	3
Dimensions		W		395	395	469	469	469	510
		D		230	230	260	292	271	334
		H		295	295	315	318	407	410
Inlet		-		16	16	23	23	30	30
Weight		Kg		16	19	21	26	40	45
Oil mist trap		Standard		OMT-O-50		OMT-D-100	CT-D-150	CT-D-300	CT-D-600
		Standard		OMT-D-100		OMT-D-100	CT-D-150	CT-D-300	CT-D-600
		Directional		OMT-C-50		OMT-C-100	CT-C-150	CT-C-300	CT-C-650
		Directional		OMT-C-100		OMT-C-100	CT-C-150	CT-C-300	CT-C-650

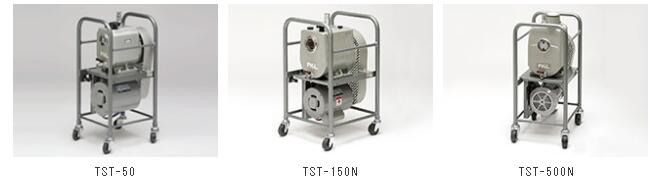

				TST-20	TST-50	TST-100	TST-150N	TST-300	TST-500N
Pumping Speed		L/min	50Hz	20	50	100	150	300	500
Pumping Speed		L/min	60Hz	20	50	100	150	300	500
Ultimate pressure	Without ballast	Pa		9.3	9.3	9.3	9.3	9.3	9.3
Ultimate pressure	With ballast	Pa		-	-	-	-	-	-
Motor power		W		65	200	250/1φ	300	400	750
Motor power		W		65	200	300/3φ	300	400	750
Voltage		V		1φ 100V	1φ 100V,220V	1φ 100V		1φ 100V,200V,220V
Voltage		V		1φ 100V	3φ 200V,220V,380V,400V
Rated rotational speed		min^-1	50Hz	600	600	600	600	600	600
Rated rotational speed		min^-1	60Hz	600	600	600	600	600	600
Oil Capacity		L		0.7	1.1	1.5	2.5	2.4	3
Dimensions		W		230	230	230	300	300	304
		D		249	249	249	314	314	384
		H		520	520	550	531	660	715
Inlet		-		16	16	23	23	30	30
Weight		Kg		17	20	22	30	40	48
Oil mist trap		Standard		OMT-O-50		OMT-D-100	CT-D-150	CT-D-300	CT-D-600
		Standard		OMT-D-100		OMT-D-100	CT-D-150	CT-D-300	CT-D-600
		Directional		OMT-C-50		OMT-C-100	CT-C-150	CT-C-300	CT-C-650
		Directional		OMT-C-100		OMT-C-100	CT-C-150	CT-C-300	CT-C-650
