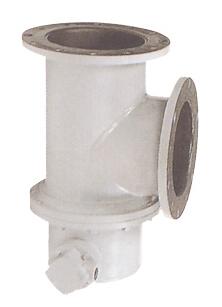

Type QK for Insulation Oils


Sealless motor pump with high reliability for circulating insulation oil in large transformers and rectifiers. Design has produced a proven product for reliability, stability and total quality. Available in many sizes and orientations.

Type SK for Insulation Oil Circulation on Trains

Oil circulation pump with A type axial (flat) motor for axial space saving and mounting to the primary transformer on Shinkansen or express train cars. Designed and fabricated to the most stringent specifications to meet all requirements for public safety.

Flow rate max	211 gpm	0.8 m³ / min
TDH max	32 ft	9.7 m
Output max	4.6 HP	3.5 kW

Type QK with Elevator Impeller

An axial flow impeller is mounted on a shaft loose. The impeller moves up when power is applied to pump the oil. Upon shutdown, the impeller moves down and creates the oil path through pump by properly sized thermo-cycle, developing energy saving.
