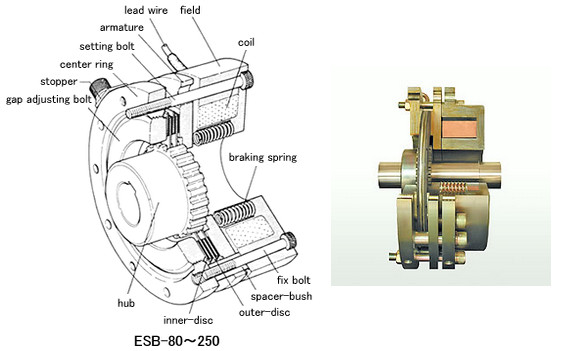

Osaki brake ESB series  ESB-80, ESB-100, ESB-135, ESB-165, ESB-190, ESB-220, ESB-250, ESB-320, ESB-440

characteristics		model No.
		80	100	115	135	165	190	220	250	320-	440-
										2	2
rated torque	Nm	3	7.5	17.5	35	75	150	300	600	1200	2800
rated voltage	DC V	90	90	90	90	90	90	90	90	45	45
coil resistance	Ω*	518	323	242	191	155	107	95	78	21	16
(20°C)
coil current	DC A*	0.17	0.28	0.37	0.47	0.58	0.84	0.95	1.15	1.52	1.98
(20°C)
allowable braking energy rate	W	30	47	69	100	194	220	407	511	539	670
allowable braking energy upto gap adjustment	MJ	12	23	29	170	264	326	398	520	2250	3263
allowable total energy	MJ	100	180	234	430	560	1040	2050	2670	6750	9790
max safety speed	r/min	1800
mechanical life		1,000,000 times								--
weight	kg	1.2	2.5	4	6	11	16	25	37	72	168
suitable power unit		HD-100M			HD-110M3					HD-130
		AC200V~DC90V			AC200V~DC90V					AC220V~DC32V
		(constant)			(momentary over excite)					(same as left)
atomospher temperature of brake		-20~+40°C

･ Low noise type ： Applicable for model 135~250. Mark K.
･ Stronger type ： Applicable for model 100~250. Mark V.
･ Manual release handle attached ： model 100~165. Mark L./190~250. Mark H.
･ Low noise type ： Applicable for model 190~250. Mark N.
･ Low temperature rise coil ： Applicable for model 135~250. Mark D.
･ Adjustable torque type ： Applicable for model 100~250. Mark T.
