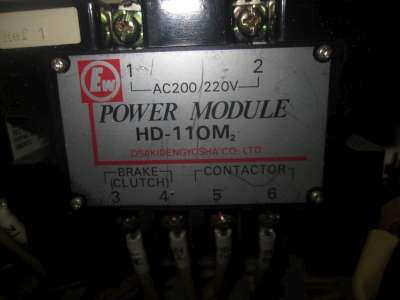

EW OSAKI Power Unit Supply Power Moudule HD-110M3, HD-120M, HD-100M, HD-100MA
| Merits: | |
| HD-110M3 | |
| ･ | Realize high-frequency driving by performing reshuffling from 180V to regular 90V with the output voltage instantly at no point of contact. |
| HD-120M | |
| ･ | Reduced consumption electricity to 25% in comparison with HD-110M3 by decreasing to steady voltage 45V. |
| Specification: | [HD-110M3] | [HD-120M] | ||
| rated input voltage. | 200/220V | |||
| AC | ||||
| rated output current. | 1.8A | 0.6A | ||
| DC | ||||
| rated output voltage. | instant | 180V | 180V | |
| DC | ||||
| (at input voltage AC200V) | always | 90V | 45V | |
| duty cycle. | inching : 8 times/min | |||
| steady : 30 times/min | ||||
| mechanical strength. | impact: dropping of 1.5m hight. no injury. | |||
| vibrate: W=5mm, Hz=50 no injury. | ||||
| atmosphere temperature. | -20~+60°C | |||
| dimesion. | 96x66x51, pitch of holes for set bolts = 84 | |||
