Home > Manufacturer > Osawa > Wonder-Gun > W501 > >

YW501-SG-B

YW501-SG-B

EXPLANATION

Wonder-Gun YW501 series are equipped with hand-grips.
This set is normally used for suction operation.
Air volume of YW501 series cannot be controlled with the rear knurled nut.

Please control with regulator.
Please confirm delivery schedule since YW501 type are custom-ordered products.

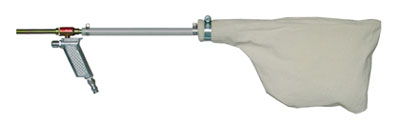

Wonder-Gun YW501-SG
Hose clamp (L)1piece,(S)2pieces
Nylon, Aluminium sleeve Each 1piece
Polyethylene hose φ12×500mm
Dust bag 370mm×200mm
UNIT CONTAINS

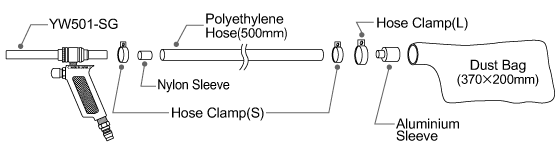

Illustration

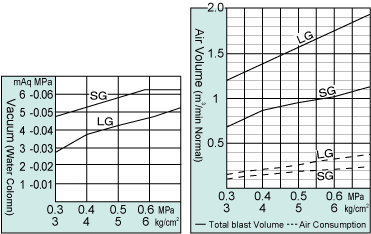

PERFORMANCE CHARTS
YW501 Performance Charts
EXAMPLE OF USE
Blowing Cooling Drying Recovery Transport Discharge
Blowing
Cooling
Drying
Recovery
Transport
Discharge
