HANATSUBA PUMP

Our company is a rotary type stainless steel pump and stainless steel filler machine.
In 1942, the company has been working as a main business of the manufacture of bearing metal and crankshaft of automobile engine.
After several years, the research and development of the volume type pump was carried out, and the pump made of gun (bronze) for the brewery was made in 1931, and the stainless steel pump for food, cosmetics and chemical factory was released since 1938. After that, we have manufactured and sold 20 models by today including model change to suit your needs.
On the basis of these experiences, we have released a stainless steel packing machine which emphasized the dissolving detergency since 1957, and has been used in many kinds of small and medium quantity filling process such as viscous liquid.
As a basic policy, we offer products that are pleasing to our customers, and we are responsible for the delivery of parts, overhaul and so on for long periods of time.
There are not many, but it corresponds to the overhaul of our pump exceeding 30 years after the sale. I want to be able to do with the experience, know-how, and new technology of manufacturing, sales, and after follow over 60 years.

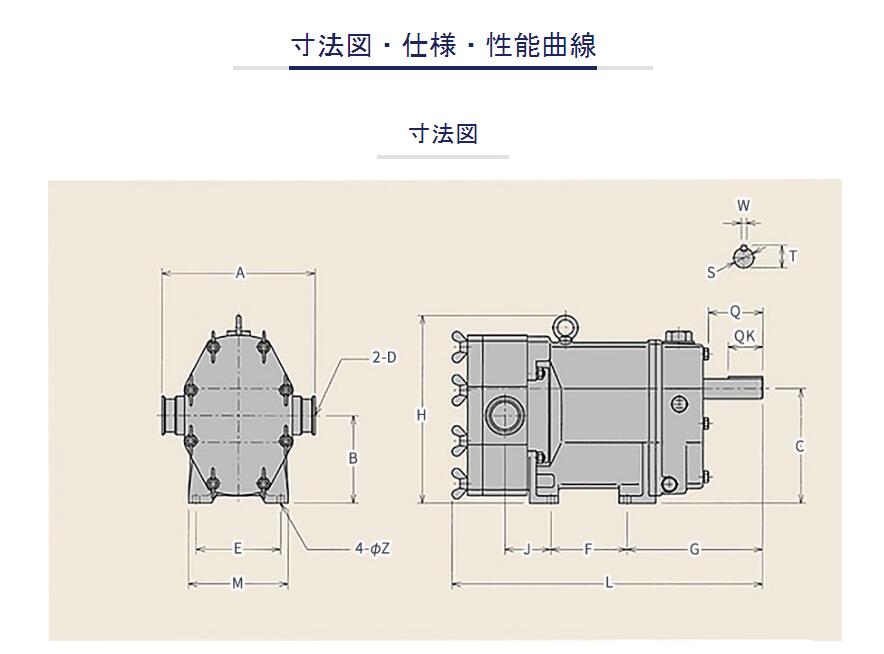

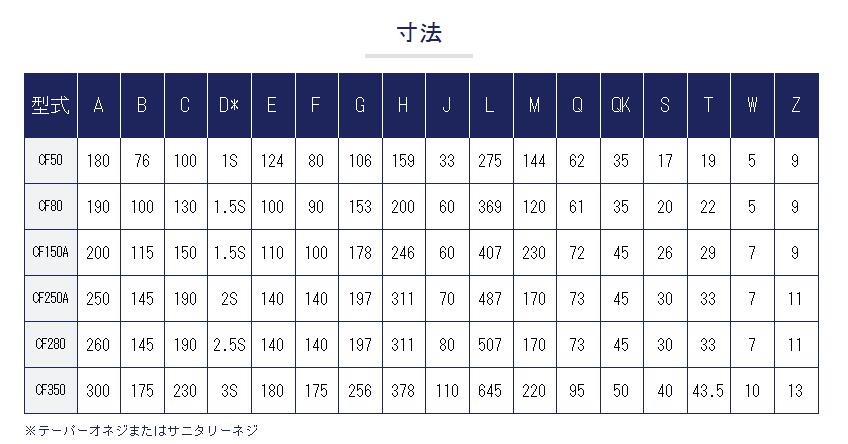

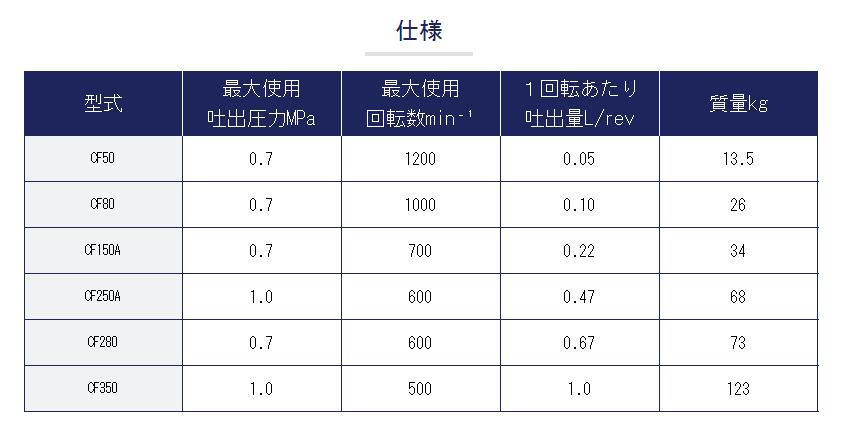

1：CF series
Special feature
1：Any liquid transport is possible from low viscosity to high viscosity liquid.
2：Because of non-contact structure, it can be used in various fields such as food, medicine and cosmetics.
3：The liquid temperature corresponds to 10 to
4：It is easy to dissolve, wash, and assemble it.
5：With its own high precision processing, it is excellent in durability, less vibration and no noise.
6：You can easily change the amount of rotation by changing the number of revolutions.
7：Can be manufactured in any rotational direction according to the purpose.
8：Mechanical seal and O-ring can change the material according to the liquid.
9：The mouthpiece can be selected from other types such as sanity type and flange.
10：You can choose a combination of base, motor, etc.

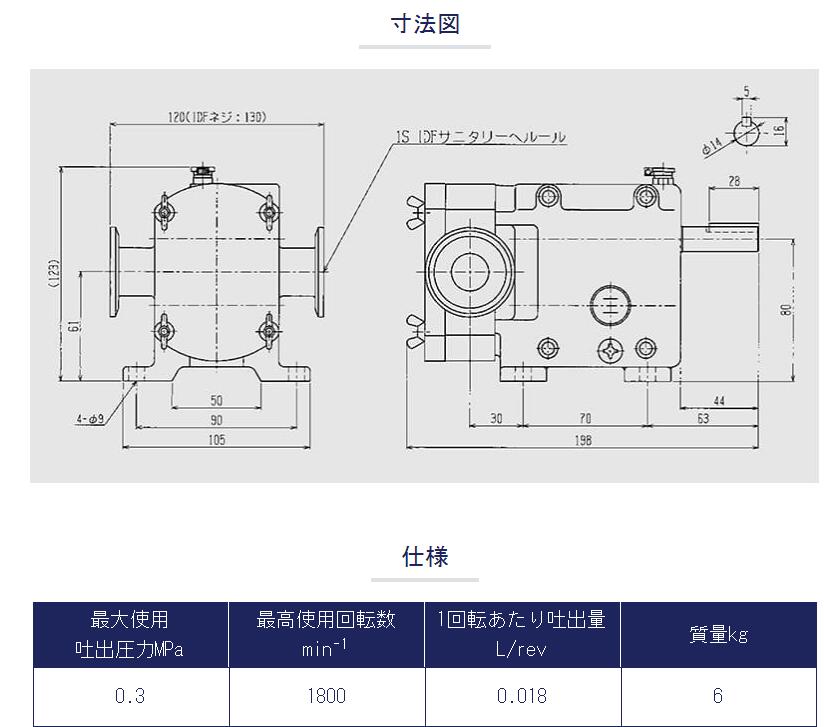

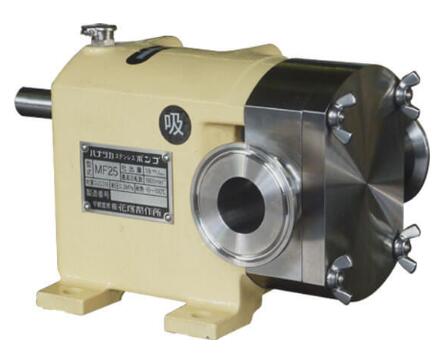

MF25 series




Features
1：Compact and lightweight stainless pump based on CF type.
2：The liquid temperature corresponds to 10 - 100 degrees Celsius.
3：Small, sanitary and easy to disassemble, wash and assemble.
4：Can be used in any rotating direction according to the purpose.
5：You can easily change the amount of rotation by changing the number of revolutions.
6：Mechanical seal and O-ring can change the material according to the liquid.
7：The mouthpiece can be selected from other types such as sanity type and flange.
8：You can choose a combination of base, motor, etc.

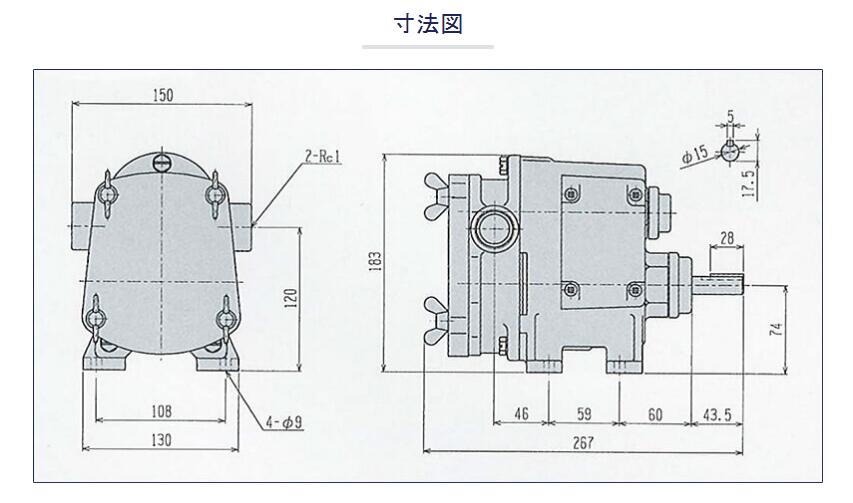

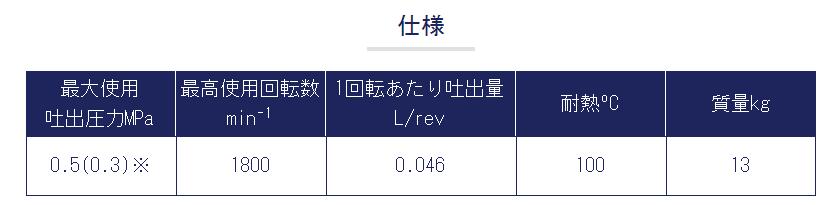

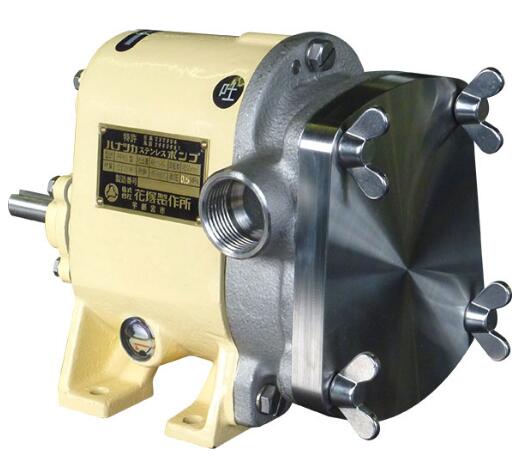

PF60 Series

Features
1：Easy to disassemble, wash and assemble because the structure is simple.
2：Can be manufactured in any rotation direction according to the application
3：You can easily change the amount of rotation by changing the number of revolutions.
4：Seals can be selected from oil seal or mechanical seal type.
5：The oil seal type shaft part is excellent in abrasion resistance because of ceramic processing.
6：Oil seal, mechanical seal and O-ring can change the material according to the liquid.
7：It is possible to choose the flange and sanitary type, etc


Liquid transport
Food & brewing
Sugar, water, honey, molasses, caramel, mayonnaise, jam, chocolate, marmalade, cheese, margarine, sauce, concentrated milk, juice, beer yeast, whisky, vinegar, sake, soy sauce, curry, fish paste, sugar, seasoning, starch, ice cream Oyster ice, cake dough, pudding, salad oil, tomato paste, kneading, dressing, salted, salt water, butter, ketchup, tea, moromi, pure water, wine, liquid egg, ume, drink yogurt, baked candy dough, soy milk, plum wine, bracken, grasshopper, sweet sake, rice Oil, sesame oil and soy sauce
Cosmetics
Face cream, cosmetic, perm, shampoo, rinse, treatment, conditioner, hand cream, lotion, emulsion, hair oil, toothpaste, etc
Chemicals, chemicals and fibers
Glue, polymer flocculant, oil, alcohol, PVC, PVA, paint, ink, caustic soda, emulsion, ammonia, acetone, various solutions, vinyl acetate, detergent, surfactant, glycerin, pesticide, fatty acid, asphalt emulsion, ethanol, printing paste etc
