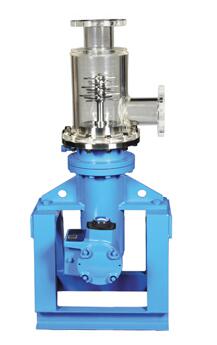

Type R Canned Motor Agitator
Side or bottom tank entry, zero leakage agitators for high vacuum to high pressure services. Space saving canned motor design requires no alignment and no possibility of ingress or contaminations from outside environment ensuring product quality.
Meets application requirements in the food, pharmaceutical and chemical industry for tanks and reactors for regular mixing, homogenization, reaction acceleration, emulsion production, uniform solution formulation and to suspend solids.
| Output max | 27 HP | 20 kW |
|---|---|---|
| RPM |
900 r / min (50 Hz) 1,100 r / min (60 Hz) |
|
Type A Mixer
A mixer with A type axial (flat) motor for side or bottom tank entry, zero leakage agitators for high vacuum to high pressure services. Space saving axial motor design requires no alignment and no possibility of contamination from outside environment. Compact and lightweight design will save tank fabrication cost.
Meets applications requirements for mixing and agitation, homogenization, uniform solution formulation, to suspend solids and catalysts and many other agitation applications.
| Output max | 5 HP | 3.7 kW |
|---|---|---|
| RPM |
900 r / min (50 Hz) 1,100 r / min (60 Hz) |
|
Canned Motor Sludge Crusher
One of Chemical Reactors' QC Problems lies in sedimentation and deposit of impurities at the tank-bottom which can be carried over to the down-stream.
Our Canned Motor Sludge Crusher, which is evolved from our household canned motor agitator, can provide the solution to this.
| Output max | 25 HP | 20 kW |
|---|---|---|
| RPM | 1,000 ～ 3,600 r / min | |
Wetted parts in stainless steel or other anti-corrosion alloys
Aerator
The "Teikoku Aerator" is a mixing and stirring device for promoting the gas-liquid contact reaction. By using a canned motor to supply fine bubbles of gas to a high-speed rotating impeller placed inside the liquid, the contact area of the gas-liquid is dramatically increased, the stagnation time of the gas is prolonged, and the efficiency of the reaction is improved. We also offer a micro-bubble aerator that generates micro-bubbles with a 10 to 20 µm diameter and the "PumpAerator", which merges the pump and aerator together.
| Application | Flue gas desulfurization equipment, removal of COD in wastewater, fermentation, neutralization, addition of various gaseous bodies |
|---|---|
| Specifications | Determined through consultation |
