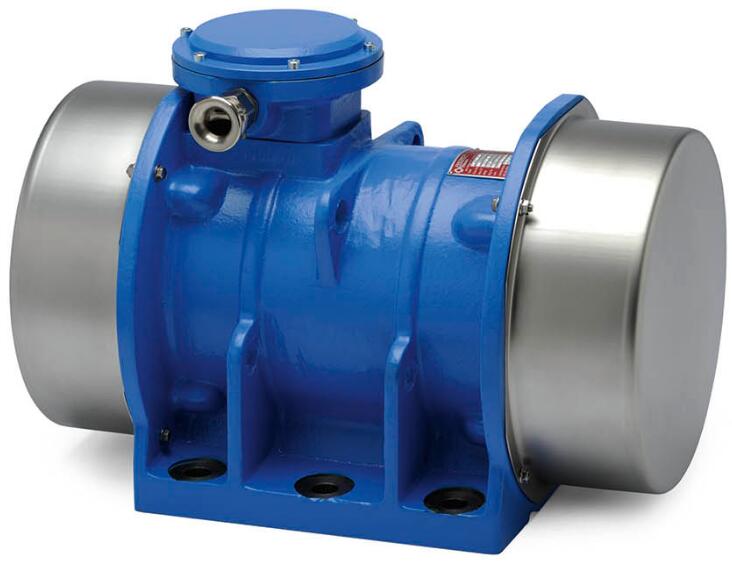

VIMARC® vibration motors have been built for over 50 years with great success. The built-in cylindrical roller bearings with high capacity and increased bearing life are lubricated in our factory with a special grease for life.
Since 2009, the extensive VIMARC® motor program in Haan, Germany has also been manufactured at the plant in Houston (Texas), USA. The complete service for these motors at both locations includes production of new motors, technical advice, spare parts and repair services.
General specifications
Power Supply:
380-415 V, 50 Hz
460-480 V, 60 Hz
Degree of protection:
IP 65 according to DIN 40050
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical insulation:
Standard
Electrical connection:
Use high flexible cable for heavy mechanical stress, for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:
-20 °C to +40 °C
Operating mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods up to motor size FDP 700 are supplied in stainless steel. All larger motors over 700 FDP come with covers made of pressed sheet metal. The special shape and silicone seal provide perfect protection against the penetration of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color coating:
Standard RAL 5015. Other colors available on request.
Type code:
The type code is read as follows:
First Letter = size
Second and third letter = Exd flameproof
Next letters = description of the embodiments. Is finally a Z, is it a 60 Hz motor,
otherwise a 50 Hz motor.
Block digits = working moment in kgcm
(working moment = 2 x static moment)
It is followed by a hyphen and then the pole number.
If the letter “V” designation follows the pole number, motor is 50 Hz,
otherwise it is a 60 Hz motor.
The motors are supplied without a cable gland, but these can be purchased.
