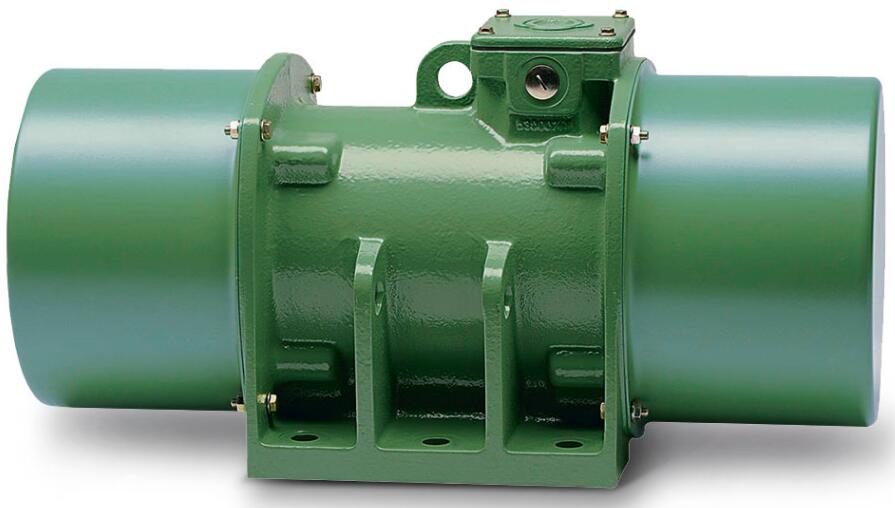

Our maintenance-free vibrator motors have been built for over 40 years with great success. The motor has a cylindrical roller bearing with high load capacity and improved bearing life. These bearings are lubricated for life with a special grease. Errors associated with re-greasing are eliminated. By using our maintenance-free vibration motors, overall maintenance costs will be reduced.
General specifications
Power Supply:
Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.
Degree of Protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible Ambient Temperature:
-20 to +40 °C.
Special versions with cold steel to -65 °C are available upon request.
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm (Working Moment = 2 x Static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm, 6 = 980 rpm (50 Hz primary frequency).
Behind the second dash, the size is specified.
Sonderausführungen und Zubehör auf Anfrage:
Anti-Condensation Heating
Thermistor
Split End Covers (see special catalog)
Special steel bearing retainer (see special catalog)
Waterproof terminal box with special sealant shed, connection cables with different specifications in different lengths are also available
General specifications
Power Supply:
Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.
Degree of Protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible Ambient Temperature:
-20 to +40 °C.
Special versions with cold steel to -65 °C are available upon request.
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm (Working Moment = 2 x Static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm, 6 = 980 rpm (50 Hz primary frequency).
Behind the second dash, the size is specified.
Sonderausführungen und Zubehör auf Anfrage:
Anti-Condensation Heating
Thermistor
Split End Covers (see special catalog)
Special steel bearing retainer (see special catalog)
Waterproof terminal box with special sealant shed, connection cables with different specifications in different lengths are also available
