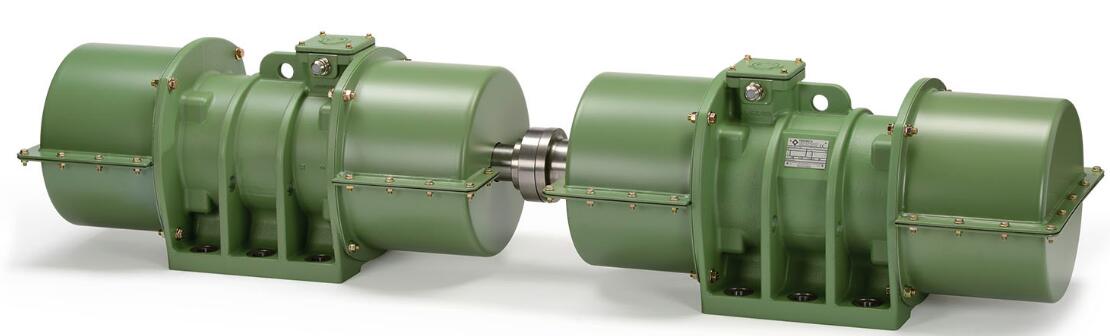

Coupled motors are designed with a one-sided elongated shaft connected by a split end cover with center hole. Two motors are connected by a coupling. This compact design is facilitated by the interaction of four vibration motors and achieves linear vibrating with very high Working Moments.
General specifications
Power Supply:
Voltages from 115 V to 690 V at 50 Hz and 60 Hz available
Degree of Protection:
IP 54
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:
-20 to +40 °C
Operating mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal, comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type code:
The type code is read as follows:
First block number = working moment in kgcm
(working moment = 2 x static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).
Behind the second dash, the size is specified.
Special designs and accessories available on request:
Anti-condensation heating
Thermistor
split end covers (see special catalog)
Special steel bearing retainer (see special catalog)
Waterproof terminal box with a special sealant shed, connection cables with different Cable specifications in different lengths available
General specifications
Power Supply:
Voltages from 115 V to 690 V at 50 Hz and 60 Hz available
Degree of Protection:
IP 54
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:
-20 to +40 °C
Operating mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal, comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type code:
The type code is read as follows:
First block number = working moment in kgcm
(working moment = 2 x static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).
Behind the second dash, the size is specified.
Special designs and accessories available on request:
Anti-condensation heating
Thermistor
split end covers (see special catalog)
Special steel bearing retainer (see special catalog)
Waterproof terminal box with a special sealant shed, connection cables with different Cable specifications in different lengths available
