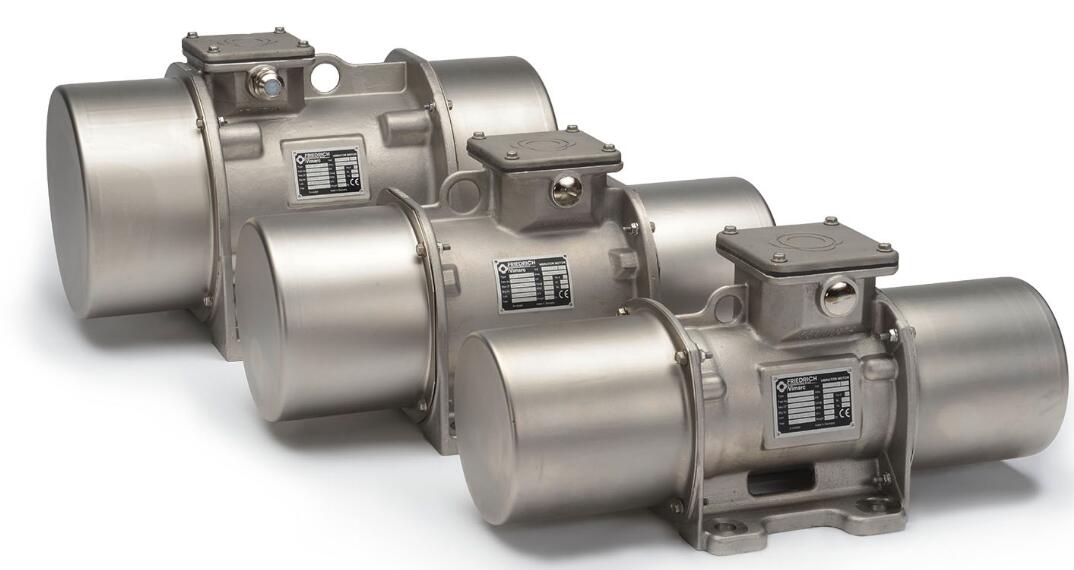

FRIEDRICH/VIMARC® stainless steel motors were developed to meet the constantly increasing demands on hygiene, germ-free use, and good cleaning characteristics in the food and pharmaceutical industries.
The stator housing and the terminal box cover of this series are made of investment-cast stainless steel and are hermetically sealed by deep-drawn stainless steel sheet metal covers. Special cleaning openings in the stainless steel housing provide excellent cleaning possibilities on the underside of the housing.
The smooth motor surface – without any ribbing – allows absolutely no formation of germs.
In all other respects these motors satisfy the general specifications of standard FRIEDRICH motors.
General specifications
Power Supply:
Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.
Degree of Protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible Ambient Temperature:
-20 to +40 °C.
Special versions with cold steel to -65 °C are available upon request.
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Assembly:
Without limitation, motors can be mounted in any position.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm (Working Moment = 2 x Static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm, 6 = 980 rpm (50 Hz primary frequency).
Behind the second dash, the size is specified.
Sonderausführungen und Zubehör auf Anfrage:
Anti-Condensation Heating
Thermistor
Split End Covers (see special catalog)
Waterproof terminal box with special sealant shed, connection cables with different specifications in different lengths are also available
The stator housing and the terminal box cover of this series are made of investment-cast stainless steel and are hermetically sealed by deep-drawn stainless steel sheet metal covers. Special cleaning openings in the stainless steel housing provide excellent cleaning possibilities on the underside of the housing.
The smooth motor surface – without any ribbing – allows absolutely no formation of germs.
In all other respects these motors satisfy the general specifications of standard FRIEDRICH motors.
General specifications
Power Supply:
Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.
Degree of Protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible Ambient Temperature:
-20 to +40 °C.
Special versions with cold steel to -65 °C are available upon request.
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Assembly:
Without limitation, motors can be mounted in any position.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm (Working Moment = 2 x Static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm, 6 = 980 rpm (50 Hz primary frequency).
Behind the second dash, the size is specified.
Sonderausführungen und Zubehör auf Anfrage:
Anti-Condensation Heating
Thermistor
Split End Covers (see special catalog)
Waterproof terminal box with special sealant shed, connection cables with different specifications in different lengths are also available
