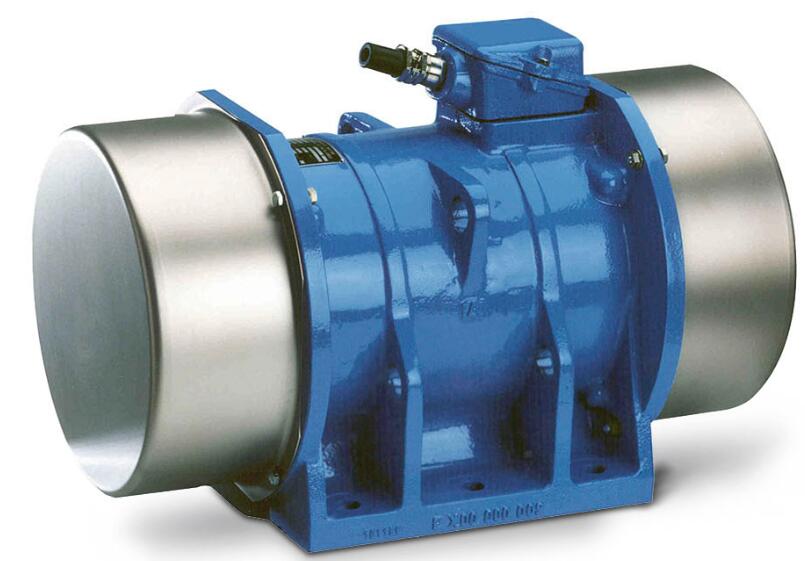

VIMARC® vibration motors have been built for over 50 years with great success. The built-in cylindrical roller bearings with high capacity and increased bearing life are lubricated in our factory with a special grease for life.
Since 2009, the extensive VIMARC® motor program in Haan, Germany has also been manufactured at the plant in Houston (Texas), USA. The complete service for these motors at both locations includes production of new motors, technical advice, spare parts and repair services.
General specifications
Power Supply:
380-415 V, 50 Hz
460-480 V, 60 Hz
Degree of protection:
IP 65 according to DIN 40050
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical insulation:
Standard
Electrical connection:
Use high flexible cable for heavy mechanical stress, for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:
-20 °C to +40 °C
Operating mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods up to motor size FX 700 are supplied in stainless steel. Motors over 700 FX come with hoods made from pressed sheet metal. The special shape and silicone seal provide perfect protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color coating:
Standard RAL 5015. Other colors available on request.
Type code:
The type code is read as follows:
First Letter = size
Next letters = description of the embodiments. Is finally a Z, is it a 60 Hz motor, otherwise a 50 Hz motor.
Block digits = working moment in kgcm
(working moment = 2 x static moment)
It is followed by a hyphen and then the pole number.
Followed by other letters = Special versions
Special versions on request:
Anti-condensation heating
Thermistor
split hoods
Coupled motors (see special catalog)
Waterproof terminal box with a special sealant shed. Connection cables with different Cable specifications in different fixed lengths to choose from
Further special versions
Installation, commissioning and lubrication:
VIMARC® vibration motors are available in sizes to AX, BX, CX, DX and FX Lifetime lubricated built. If desired, however, a lubrication device available.
Sizes HX and KX come from the factory with re-greasing capabilities.
Since 2009, the extensive VIMARC® motor program in Haan, Germany has also been manufactured at the plant in Houston (Texas), USA. The complete service for these motors at both locations includes production of new motors, technical advice, spare parts and repair services.
General specifications
Power Supply:
380-415 V, 50 Hz
460-480 V, 60 Hz
Degree of protection:
IP 65 according to DIN 40050
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical insulation:
Standard
Electrical connection:
Use high flexible cable for heavy mechanical stress, for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:
-20 °C to +40 °C
Operating mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods up to motor size FX 700 are supplied in stainless steel. Motors over 700 FX come with hoods made from pressed sheet metal. The special shape and silicone seal provide perfect protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color coating:
Standard RAL 5015. Other colors available on request.
Type code:
The type code is read as follows:
First Letter = size
Next letters = description of the embodiments. Is finally a Z, is it a 60 Hz motor, otherwise a 50 Hz motor.
Block digits = working moment in kgcm
(working moment = 2 x static moment)
It is followed by a hyphen and then the pole number.
Followed by other letters = Special versions
Special versions on request:
Anti-condensation heating
Thermistor
split hoods
Coupled motors (see special catalog)
Waterproof terminal box with a special sealant shed. Connection cables with different Cable specifications in different fixed lengths to choose from
Further special versions
Installation, commissioning and lubrication:
VIMARC® vibration motors are available in sizes to AX, BX, CX, DX and FX Lifetime lubricated built. If desired, however, a lubrication device available.
Sizes HX and KX come from the factory with re-greasing capabilities.
