Pump for low temperature liquid

How the F series was born

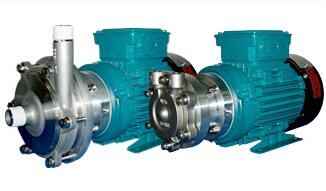

Sanwa stainless steel magnet drive pumps are used in various fields and sites because they are leak-free, safe, reliable, and have a long service life. Another feature is that they can transfer low temperature liquids. Their no-leak and high reliability features are greatly praised and they are used as refrigerant feed pumps for machines and units working with inert fluorinated refrigerants. After this technology had been improved a number of times, the new model F series was born.
Product features
Special seal is used for leak-free measures at low temperature (-100℃)
A frame adapter for low temperatures (with dry air or a nitrogen purge port) is installed.
The layout is arranged specially for low temperature applications (motor with legs + thermal insulation sheets)
Use a newly developed magnet coupling (decreases heat transfer by 20% thanks to the compact coupling by 30%)
Example of applicable liquid
Fluorine inert refrigerant (NOVEC/HFE7200, Fluorinert, GALDEN)
Ethylene glycol, LLC, silicon oil
Other refrigerants
Applications
Chiller
Constant temperature unit (for the semiconductor, LCD, and chemical industries)
Various environmental test systems
Refrigerators and others
