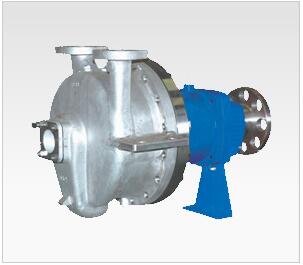

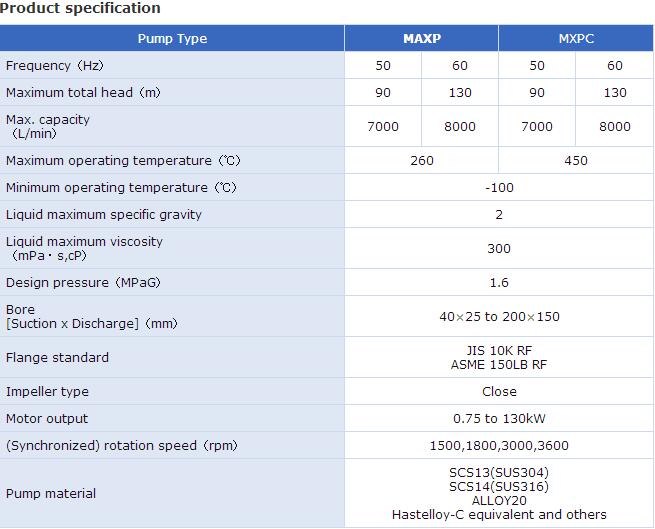

MAXP
Process pump
Casing foot support type
Stainless steel magnet drive pump for heavy duty that conforms to ANSI standard (B73.1).
Flexibly designed for a variety of situations, they have high functionality and lots of options. Pumps that confirm to the API standard are also available on request.
Wide capacity range, up to 130 kW motor capacity, and a large variety of sizes.
Max liquid temperature: 260℃.
Min liquid temperature: -100℃.
Pump material SUS304, SUS316, ALLOY20 and Hastelloy-C equivalent, so they offer excellent corrosion resistance. (Other materials such as titanium and Monel are also available on request.)
The magnet drive is efficiently supported by the SiC bearing (SiC-D is optional) which is employed as standard.
Greatly reduced total cost, including spare parts, maintenance and running costs.
Easy to disassemble and reassemble.

MXPC
Casing centerline support type
Stainless steel magnet drive pump for heavy duty.
For high temperature liquid: Center line support casing is employed.
Flexibly designed for a variety of situations, they have high functionality and lots of options. Pumps that conform API standard are also available on request.
Optional full jacket structure is available for high melting point liquid.
Wide capacity range up to 130kW motor capacity.
Max liquid temperature: 450℃.
Mix liquid temperature: -100℃.
Pump material SUS304, SUS316, ALLOY20 and Hastelloy-C equivalent, so they offer excellent corrosion resistance. (Other materials such as alloys, titanium and Monel are also available on request.)
The magnet drive is efficiently supported by the SiC bearing (SiC-D is optional) which is employed as standard.
Greatly reduced total cost, including spare parts, maintenance and running costs.
Easy to disassemble and reassemble.

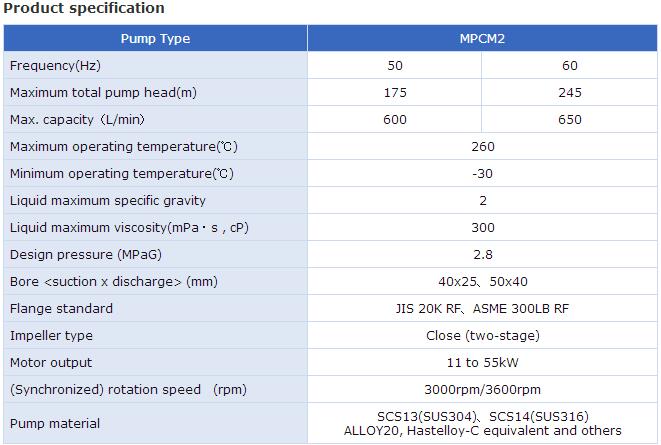

MPCM2
New models have been added to the SANWA magnet pump line up (heavy duty series).
Multi-stage impeller stainless steel magnet drive pump that has an extremely high pump head (max. 245m).

Multi-stage stainless steel magnet drive pump.
Realized high total head (max. 245m).
Max liquid temperature 260℃.
Min liquid temperature -30℃.
Excellent corrosion resistance for SUS304, SUS316, ALLOY20, and Hastelloy-C equivalent.
The magnet drive is perfectly supported as the SiC bearing (SiC-D is optional) is employed as standard.
Greatly reduced the total cost, including spare parts, maintenance and running costs.
Easy to disassemble and reassemble.
