MPL

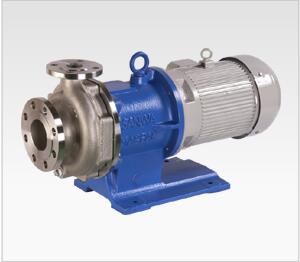

Large size standard centrifugal magnet drive pump

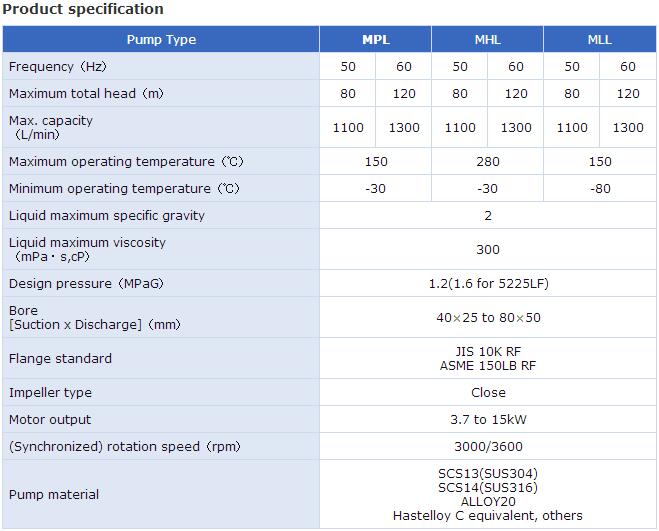

MPL:Operating temperature range:-30℃ to +150℃
MHL:Operating temperature range:+151℃ to +280℃
MLL:Operating temperature range:-80℃ to -31℃

This is the largest model among the MAGPAC® series with the motor capacity of 15 kW. An excellent pump that is economical, safe and friendly to the environment and users.
The MPL, which is developed based on lots of experiences and expertise, drastically expands the performances of MAGPAC® series. The MHL handles high temperature (up to 280˚C) and the MLL handles low temperature (-80˚C). They are equipped with SiC bearing (SiC-D is optional) as standard to make them maintenance free with reduced total cost (lifecycle cost). Of course, they are designed to have long service life and highly reliable. As they are seal-less structure of no shaft sealing, they can be used for transferring hazardous and poisonous liquid.
All the three models (MPL, MHL, MLL) can transfer liquid below freezing.
