MET/MTFO/MDS

Process pump

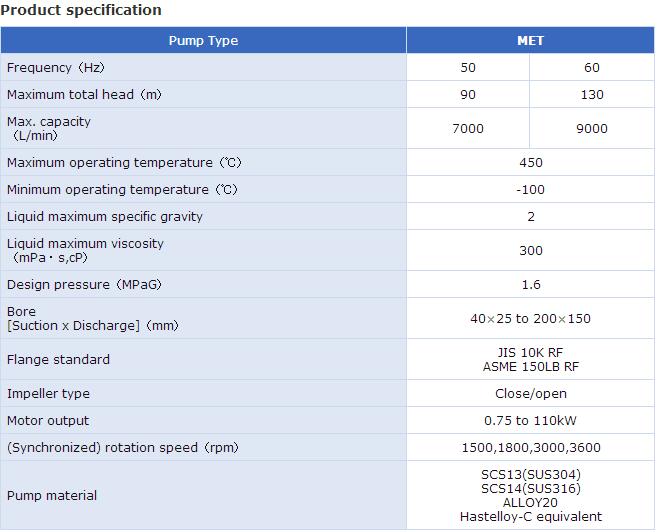

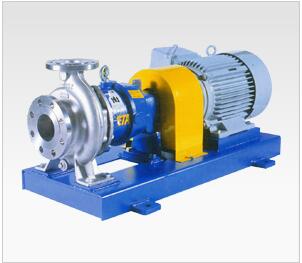

1:MET
Open-coupled pump
Stainless steel magnet drive pumps conform to the international standard ISO2858 (JIS B 8313, 16bar).
The models in this series cover a wide range of motor capacities, up to 110 kW, connection 200x150mm.
Applicable pump material are SUS304, SUS316, ALLOY20, and Hastelloy-C equivalent, so they offer excellent corrosion resistance.
The magnet drive is perfectly supported as the SiC bearing (SiC-D is optional) is used as standard.
High efficiency and low cost (reduced by 30%)
Largely reduced the total cost, including spare parts, maintenance and running costs.
Your existing ISO2858 (JIS B 8313,16bar) seal pump can be exchanged to a seal-less pump.

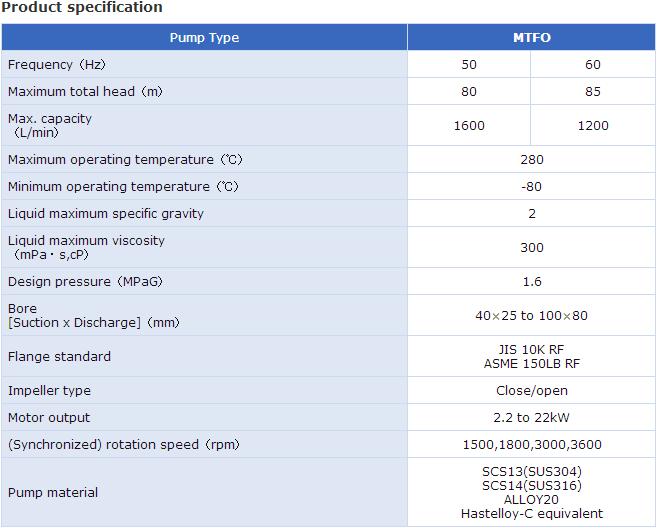

2:MTFO
Close-coupled process pumps
Close-coupled pump
Close-coupled stainless steel magnet drive pumps
The series covers wide capacity range up to 22 kW.
Applicable pump material are SUS304, SUS316, ALLOY20, and Hastelloy-C equivalent, so they offer excellent corrosion resistance.
The magnet drive is efficiently supported because the SiC-bearing (SiC-D is optional) is employed as standard.
Greatly reduces total cost, including spare parts, maintenance and running costs.
Easy to disassemble and reassemble.

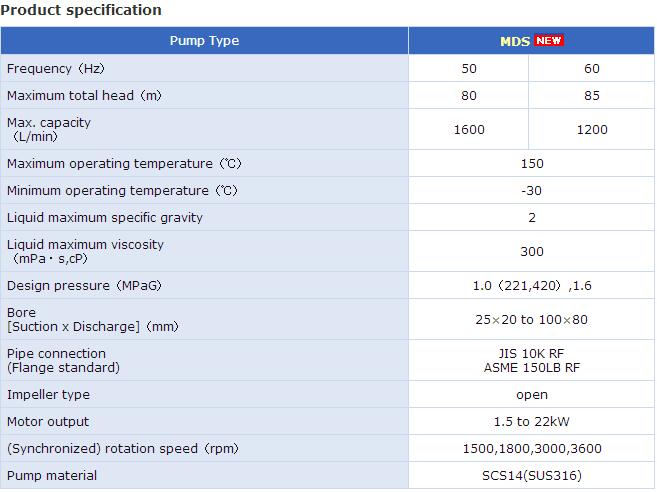

3:MDS
Magnet pump for high density slurry
Close-coupled pump
Handles high density slurry liquid (solid grains).
Thanks to the filtering effect of the discharge separator, the pump can transfer liquids containing granular material with diameters of 1 to 2mm, 30wt%
Neither external flushing nor bearing monitoring is necessary. Highly durabe.
The series covers wide capacity range 2.2 to 22 kW motor capacity.
The magnet drive is perfectly supported as the SiC-D bearing is used as standard.
Easy to disassemble and reassemble.
