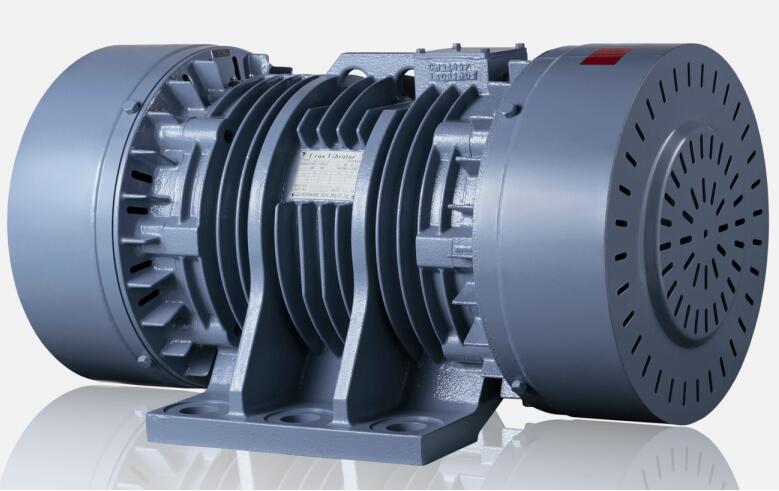

With 70% of the Japan domestic market share, and over 900,000 units shipped worldwide, the Uras Vibrator is the world standard for rotary electric vibrators.
| Spec | KEE series | ||||
|---|---|---|---|---|---|
| 2 Pole | 4 Pole | 6 Pole | 8 Pole | ||
| Power Supply | Three-phase 200/200/220V 50/60/60HzThree-phase 400/400/440V 50/60/60Hz | ||||
| Time Rating | Continuous Rating | ||||
| Thermal Class | Class E Insulation | ||||
|
External Cover Structure (Vibrational Force kN) |
Totally-Enclosed (IP66) |
0.5-6 | 1.5-34 | 3-60 | 5-54 |
|
Enclosed Fan-Cooled (IP55) |
10-40 | 52-110 | 80-185 | 85-210 | |
| Power Output(kW) | 0.040-3 | 0.065-7.5 | 0.2-13 | 0.4-12 | |
|
Rotational Speed (r/min) 50/60Hz |
3000/3600 | 1500/1800 | 1000/1200 | 750/900 | |
| Vibrational Force (kN) | 0.5-40 | 1.5-110 | 3-185 | 5-210 | |
|
Bearing (Vibrational Force kN) |
Sealed ZZ Ball | 0.5-10 | 1.5-12 | 3-18 | 5-20 |
| NJ Roller | 16-40 | 17-110 | 24-185 | 32-210 | |
| Cable |
Enclosed Cable2PNCT (4 Core) x 2m(0.75mm2/1.25mm2/2mm2/5.5mm2/8mm2/14mm2) *KEE-0.5-2CW cable is 1m |
||||
| Installation Method | Attach by frame legs (any orientation is permitted). When installing vertically or diagonally, ensure that the side with the terminal box is the higher side. | ||||
| Coating Color | Munsell 2.5PB5/2 | ||||
| Installation and Operating Environment |
Can be used indoors and outdoors. Ambient Temperature (including installation base): -15°C to +40°C Altitude: 1,000m max.Relative Humidity: 85% max with no condensation Can be used in tropical climates. |
||||
| Available Safety Standard Markings | CSA and CE markings available (optional) | ||||
2 Pole
| Model | Max. Vibrational Force (kN) | Output (kW) |
|---|---|---|
| KEE-0.5-2CW | 0.5 | 0.04 |
| KEE-1-2CW | 1 | 0.075 |
| KEE-2-2CW | 2 | 0.15 |
| KEE-3.5-2BW | 3.5 | 0.25 |
| KEE-6-2BW | 6 | 0.4 |
| KEE-10-2BW | 10 | 0.75 |
| KEE-16-2W | 16 | 1.2 |
| KEE-23-2W | 23 | 1.7 |
| KEE-30-2W | 30 | 2.2 |
| KEE-40-2W | 40 | 3 |
|
Synchronous Rotational Speed (rpm) 60Hz Power Frequncy: 3600rpm (60Hz) 50Hz Power Frequncy: 3000rpm (50Hz) |
||
4 Pole
| Model | Max. Vibrational Force (kN) | Output (kW) |
|---|---|---|
| KEE-1.5-4BW | 1.5 | 0.065 |
| KEE-3-4BW | 3 | 0.13 |
| KEE-6-4BW | 6 | 0.25 |
| KEE-9-4BW | 9 | 0.4 |
| KEE-12-4BW | 12 | 0.6 |
| KEE-17-4W | 17 | 0.85 |
| KEE-24-4W | 24 | 1.1 |
| KEE-34-4W | 34 | 1.5 |
| KEE-52-4BW | 52 | 2.2 |
| KEE-75-4BW | 75 | 3.7 |
| KEE-84-4CW | 84 | 5.5 |
| KEE-110-4W | 110 | 7.5 |
|
Synchronous Rotational Speed (rpm) 60Hz Power Frequncy: 1800rpm (30Hz) 50Hz Power Frequncy: 1500rpm (25Hz) |
||
6 Pole
| Model | Max. Vibrational Force (kN) | Output (kW) |
|---|---|---|
| KEE-3-6W | 3 | 0.2 |
| KEE-5-6W | 5 | 0.35 |
| KEE-9-6BW | 9 | 0.6 |
| KEE-13-6BW | 13 | 0.85 |
| KEE-18-6BW | 18 | 1.2 |
| KEE-24-6CW | 24 | 1.6 |
| KEE-34-6W | 34 | 2.2 |
| KEE-45-6BW | 45 | 3 |
| KEE-60-6BW | 60 | 3.7 |
| KEE-80-6CW | 80 | 5.5 |
| KEE-110-6BW | 110 | 7.5 |
| KEE-140-6W | 140 | 9 |
| KEE-165-6W | 165 | 11 |
| KEE-185-6W | 185 | 13 |
|
Synchronous Rotational Speed (rpm) 60Hz Power Frequncy: 1200rpm (20Hz) 50Hz Power Frequncy: 1000rpm (16.7Hz) |
||
8 Pole
| Model | Max. Vibrational Force (kN) | Output (kW) |
|---|---|---|
| KEE-5-8W | 5 | 0.4 |
| KEE-10-8BW | 10 | 0.75 |
| KEE-20-8BW | 20 | 1.5 |
| KEE-32-8W | 32 | 2.2 |
| KEE-54-8BW | 54 | 3.7 |
| KEE-85-8W | 85 | 6 |
| KEE-110-8BW | 110 | 7.5 |
| KEE-135-8BW | 135 | 9 |
| KEE-170-8BW | 170 | 11 |
| KEEH-210-8W | 210 | 12 |
|
Synchronous Rotational Speed (rpm) 60Hz Power Frequncy: 900rpm (15Hz) 50Hz Power Frequncy: 750rpm (12.5Hz) |
||
- CSA Certification
- All KEE models have received CSA certification, available as an option.
- Class 421101-Motors and Generators
- CE Marking
- 2 to 8 pole models with max. vibrational force more than 3kN are compatible with the CE marking, available as an option.
- *excludes KEE-84-4CW,KEE-110-6BW,KEE-85-8W and KEEH-210-8W
Manufacturing Range
| Model | Poles | Models | Vibrational Force (kN) | Voltage Class (V) | Synchronous Rotational Speed (rpm) | Output (kW) | |
|---|---|---|---|---|---|---|---|
| Standard model | KEE | 2 | 10 | 0.5-40 | 200/400 class | 3000/3600 | 0.04-3 |
| 4 | 12 | 1.5-110 | 200/400 class | 1500/1800 | 0.0065-7.5 | ||
| 6 | 14 | 3-185 | 200/400 class | 1000/1200 | 0.2-13 | ||
| 8 | 10 | 5-210 | 200/400 class | 750/900 | 0.4-12 | ||
A wide range of voltages other than those listed above are available.
Custom design/specifications are available. Please consult with the Overseas Sales Department.
