| Spec | SEE series |
|---|---|
| 2 Pole (capacitor start) | |
| Power Supply | Single-phase 100/100/110V 50/60/60HzSingle-phase 200/200/220V 50/60/60Hz |
| Time Rating | Continuous Rating |
| Thermal Class | Class E Insulation |
|
External Cover Structure (Vibrational Force kN) |
Totally-Enclosed (IP66)0.5-3.5 (SEE-0.1-2 is IP43) |
| Power Output (kW) | 0.015-0.22 |
|
Rotational Speed (r/min) 50/60Hz |
3000/3600 |
| Vibrational Force (kN) | 0.1-3.5 |
|
Bearing (Vibrational Force kN) |
Sealed ZZ Ball0.1-3.5 |
| Cable |
Enclosed Cable2PNCT (3 Core) x 2m(0.75mm2) *SEE-0.1-2 and SEE-0.5-2CW cable is 1m |
| Installation Method |
Attach by frame legs (any orientation is permitted). When installing vertically or diagonally, ensure that the side with the terminal box is the higher side. |
| Coating Color | Munsell 2.5PB5/2 |
| Installation and Operating Environment |
Can be used indoors and outdoors. Ambient Temperature (including installation base): -15°C to +40°C Altitude: 1,000m max.Relative Humidity: 85% max with no condensation Can be used in tropical climates. |
2 Pole
| Model | Max. Vibrational Force (kN) | Output (W) |
|---|---|---|
| SEE-0.1-2 | 0.1/0.15* | 15 |
| SEE-0.5-2CW | 0.5 | 30 |

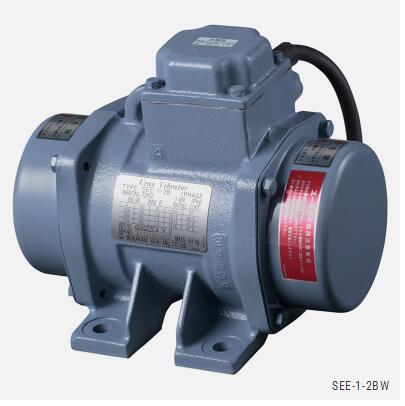

| SEE-1-2BW | 1 | 65 |
| SEE-2-2BW | 2 | 120 |
| SEE-3.5-2BW | 3.5 | 220 |
- *: The max. vibrational force of SEE-0.1-2 is 0.1kN at 50Hz and 0.15kN at 60Hz.
- ** SEE-0.5-2CW to SEE-3.5-2BW are all-weather types and can be used outdoors.
- Starter Circuit
- SEE-0.1-2, SEE-0.5-2CW, and SEE-1-2BW have built in capacitor starters.
- SEE-2-2BW requires a starter circuit.
Manufacturing Range
| Model | Poles | Models | Vibrational Force (kN) | Voltage Class (V) | Rotational Speed (r/min) | Power Output (kW) | |
|---|---|---|---|---|---|---|---|
| Single Phase | SEE | 2 | 5 | 0.1-3.5 | 100/200 class | 3000/3600 | 0.015-0.22 |
A wide range of voltages other than those listed above are available.
Custom design/specifications are available. Please consult with the Overseas Sales Department.
