| Spec | KHE series | KHE-T series | |
|---|---|---|---|
| 2 Pole | 2 Pole | ||
| Power Supply | Three-phase 200/200V 100/120Hz | Three-phase 200/200V 150/180Hz | |
| Time Rating | Continuous Rating | ||
| Thermal Class | Class E Insulation | ||
|
External Cover Structure (Vibrational Force kN) |
Totally-Enclosed (IP66) |
1-7.5 | 1-7.5 |
|
Enclosed Fan-Cooled (IP55) |
12-22 | 12 | |
| Power Output (kW) | 0.075-2.2 | 0.075-1.2 | |
|
Rotational Speed (r/min) 50/60Hz |
6000/7200 | 9000/10800 | |
| Vibrational Force (kN) | 1-22 | 1-12 | |
|
Bearing (Vibrational Force kN) |
Sealed ZZ Ball | 1-4 | 1-4 |
| NJ Roller | 7.5-22 | 7.5-12 | |
| Cable | Enclosed Cable2PNCT (4 Core) x 2m(0.75mm2/1.25mm2) | ||
| Installation Method |
Attach by frame legs (any orientation is permitted). When installing vertically or diagonally, ensure that the side with the terminal box is the higher side. |
||
| Coating Color | Munsell 2.5PB5/2 | ||
| Installation and Operating Environment |
Can be used indoors and outdoors. Ambient Temperature (including installation base): -15°C to +40°C Altitude: 1,000m max.Relative Humidity: 85% max with no condensation Can be used in tropical climates. |
||
High Frequency Uras Vibrator KHE 2 Pole
| Model | Max. Vibrational Force (kN) | Power Output (kW) |
|---|---|---|

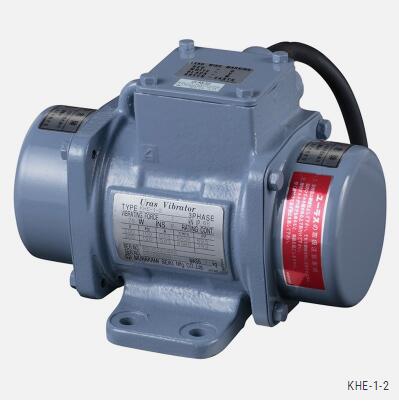

| KHE-1-2 | 1 | 0.075 |
| KHE-2-2 | 2 | 0.15 |
| KHE-4-2 | 4 | 0.4 |
| KHE-7.5-2 | 7.5 | 0.75 |
| KHE-12-2 | 12 | 1.2 |
| KHE-16-2 | 16 | 1.6 |
| KHE-22-2 | 22 | 2.2 |
High Frequency Uras Vibrator KHE-T 2 Pole
| Model | Max. Vibrational Force (kN) | Power Output (kW) |
|---|---|---|
| KHE-1-2T | 1 | 0.075 |
| KHE-2-2T | 2 | 0.15 |
| KHE-4-2T | 4 | 0.4 |
| KHE-7.5-2T | 7.5 | 0.75 |
| KHE-12-2T | 12 | 1.2 |
Manufacturing Range
| Model | Poles | Models | Vibrational Force (kN) | Voltage Class (V) | Rotational Speed (r/min) | Power Output (kW) | |
|---|---|---|---|---|---|---|---|
| High Frequency Type | KHE | 2 | 7 | 1-22 | 200/400 class | 6000/7200 | 0.075-2.2 |
| KHE-T | 2 | 5 | 1-12 | 200/400 class | 9000/10800 | 0.075-1.2 | |
A wide range of voltages other than those listed above are available.
Custom design/specifications are available. Please consult with the Overseas Sales Department.
